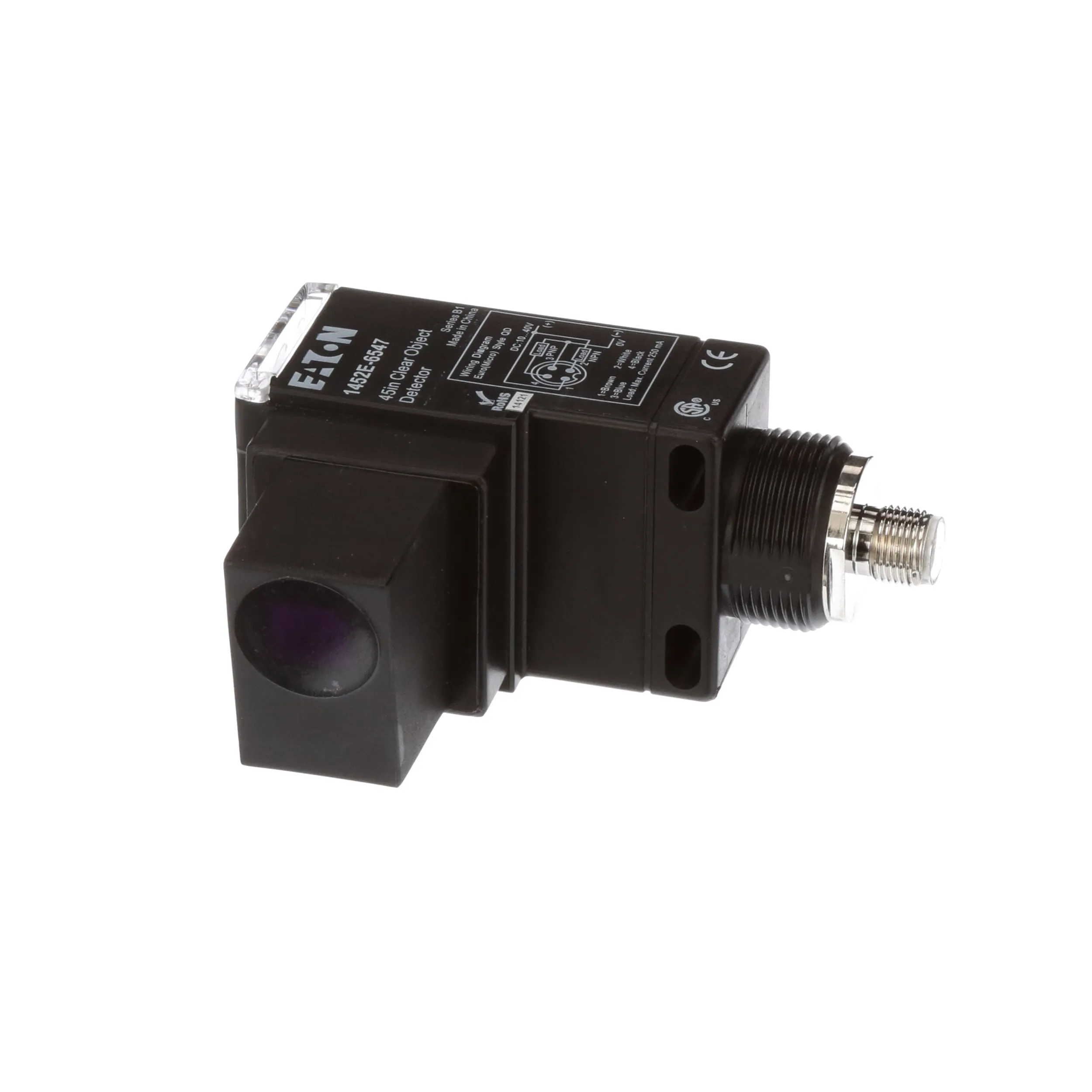

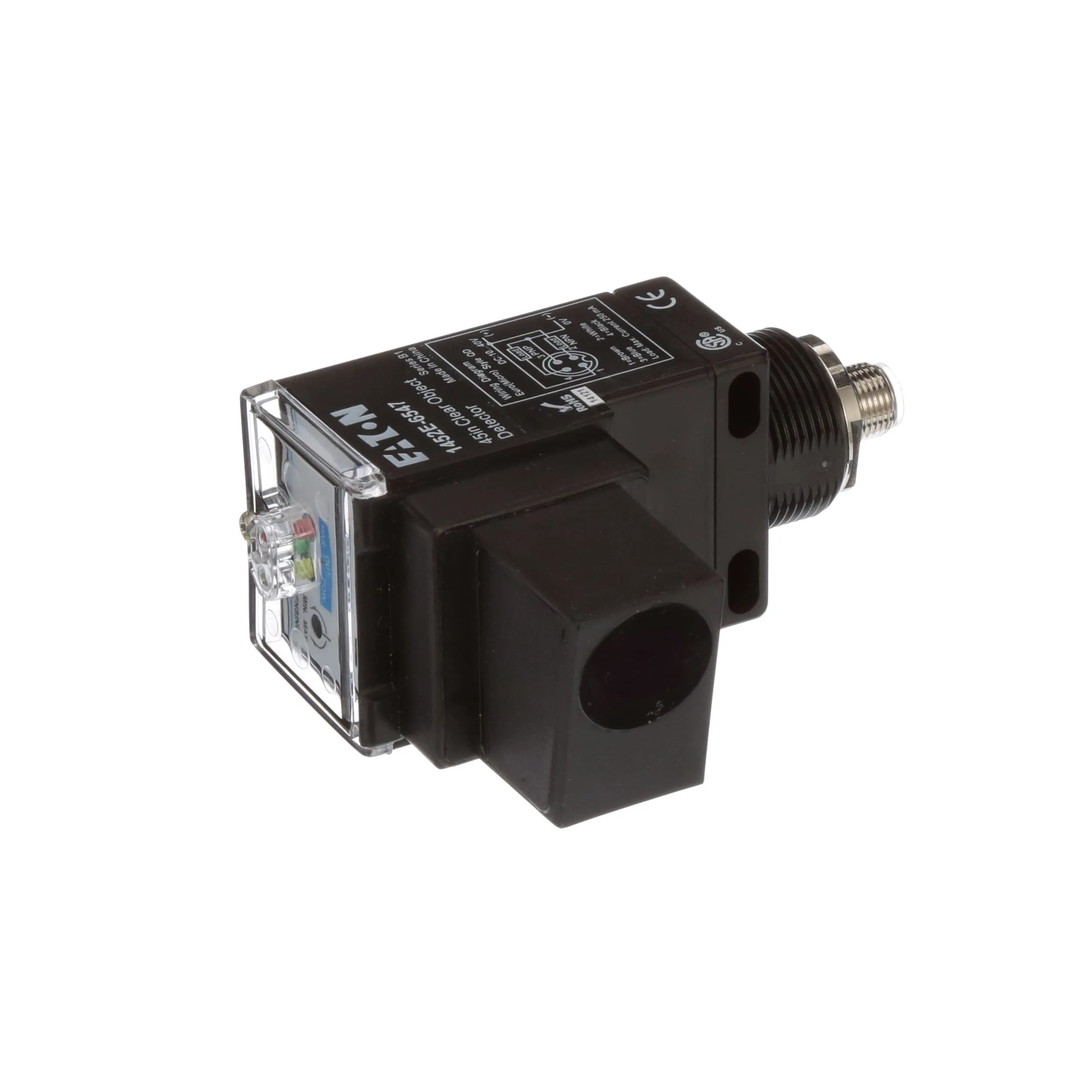

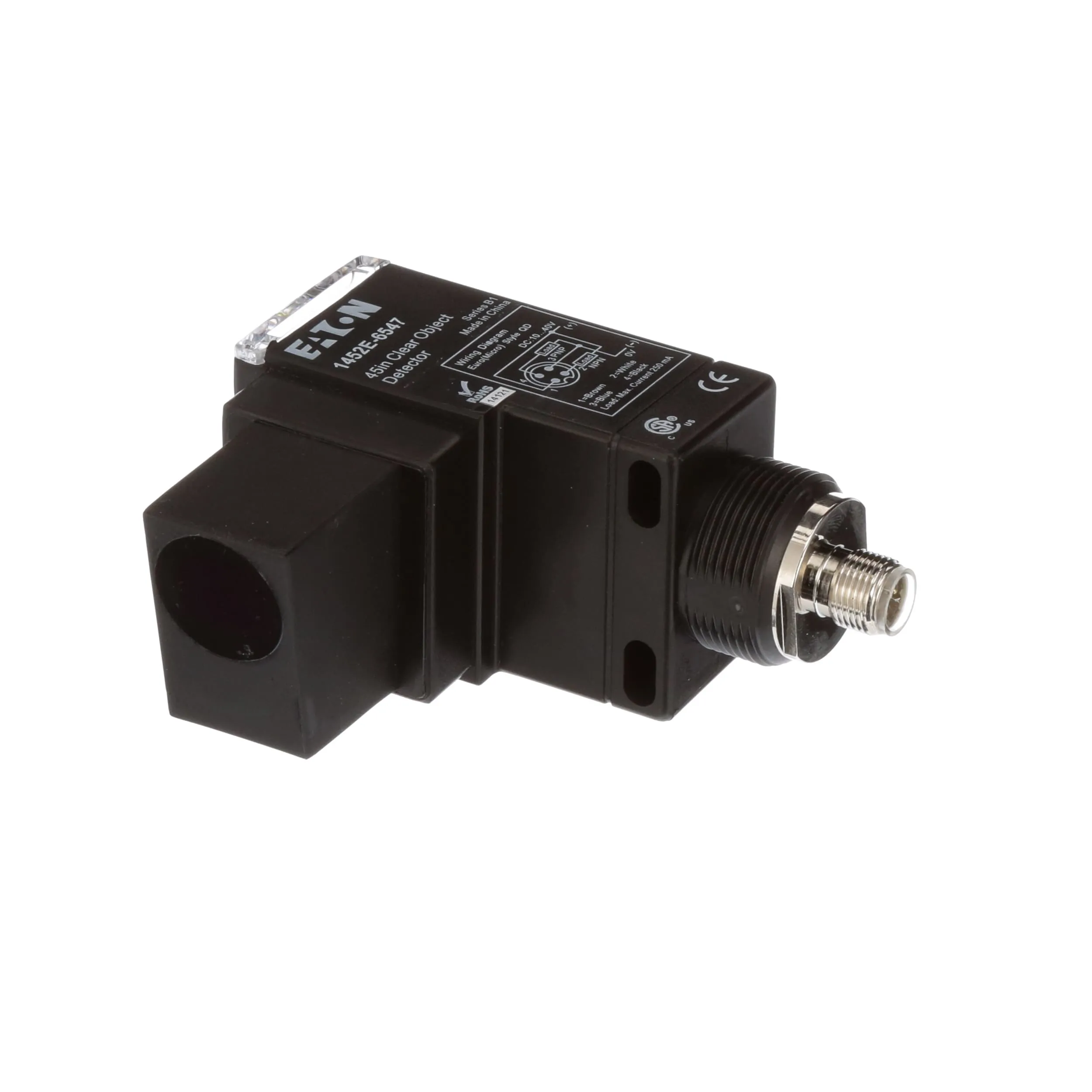

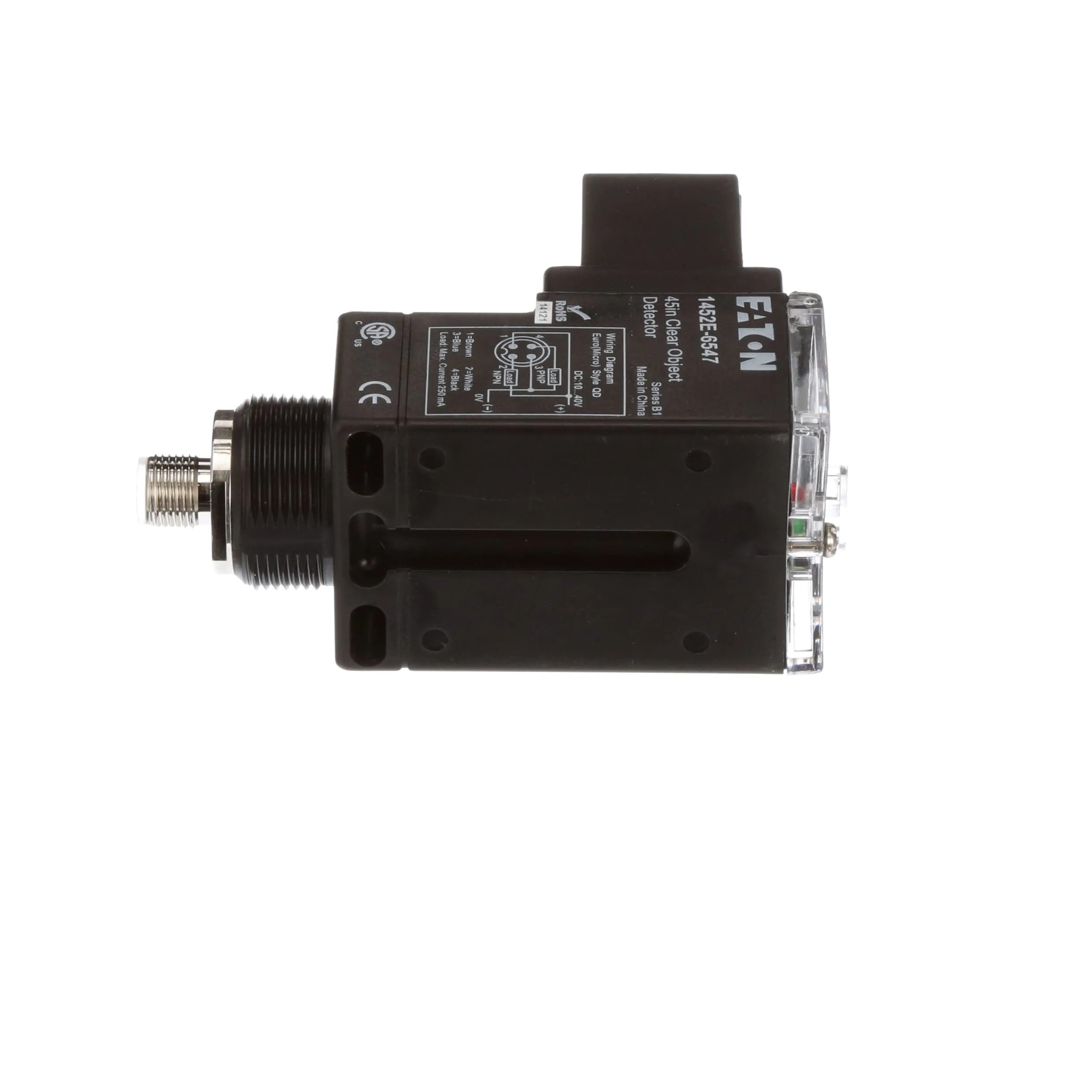

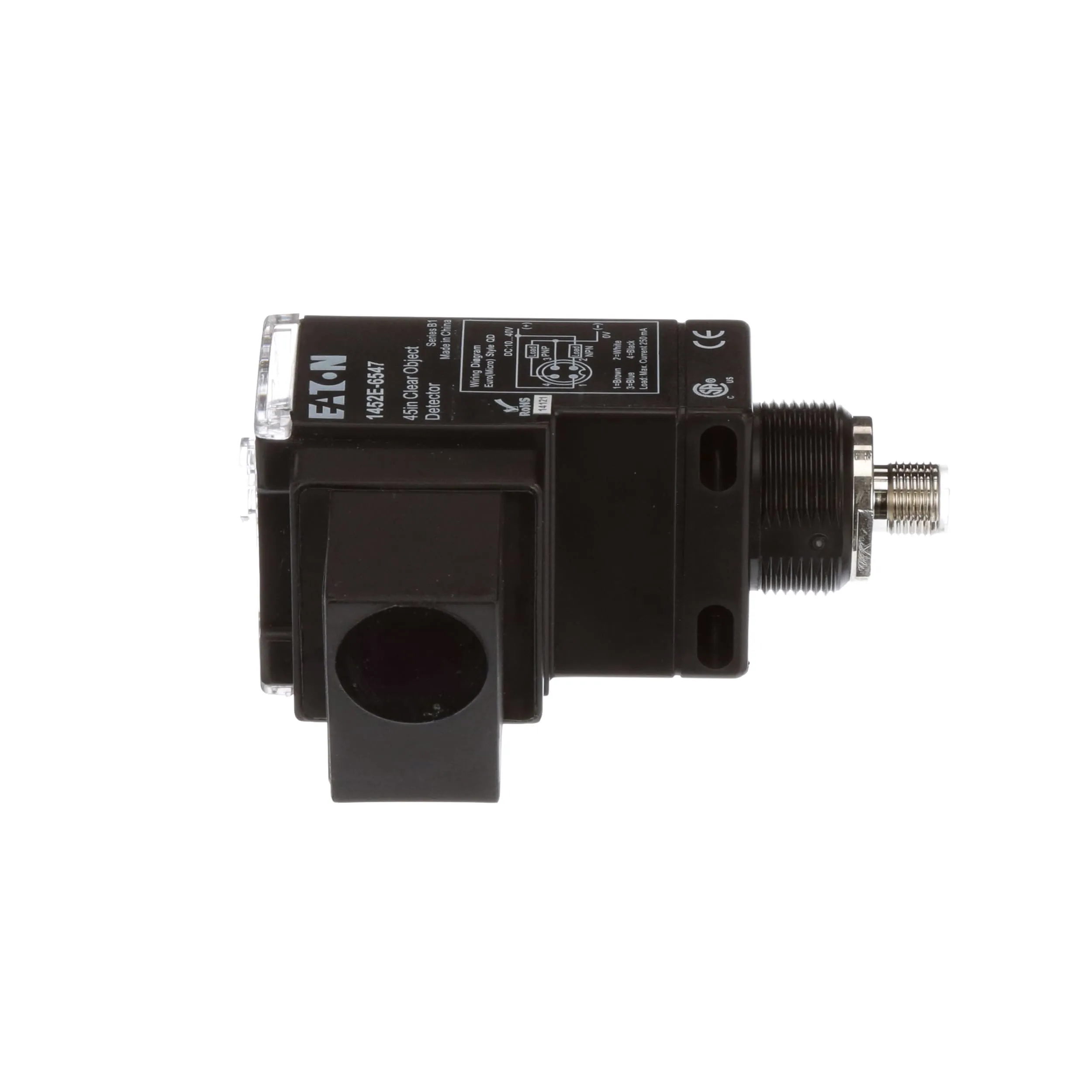

Name: Eaton - Cutler Hammer 1452E-6547
SKU: 553627

Product Details ＋

Product Attribute	Attribute Value
Body Style	Rectangular
Connection	M12
Connection Type	M12 4-Pin
Contact Configuration	NPN/PNP open collector outputs
Contact Rating	250 mA at 10-40 Vdc
Current, Switching	250 mA
Height	1.81 Inch
Input Voltage	10-40 Vdc
IP Rating	IP67
Length	4.01 Inch
Light Source	Visible Red
Measurement Range	1.2 m
Number of Pins	4 pin
Output	NPN/PNP
Protection	Output S/C, overcurrent and reverse polarity
Sensing Mode	Retroreflective
Sensor Type	Clear Object Detector
Series
Supply Voltage	40 VDC
Technology	Photoelectric
Type	Retroreflective Sensors
UPC Code	782116111930
Width	3.46 Inch

Overview

The new Enhanced versions of the Cutler-Hammer® 50 Series™ Photoelectric Sensors from Eaton's electrical business offer flexibility, durability and high optical performance in a cost-effective self-contained package. Choose from three output types, four sensing modes and three connection styles to tailor the sensor to exactly meet your needs. Sensors are available in thru-beam, reflex, polarized reflex, diffuse reflective, and clear object sensing modes. Brackets are available for easy mounting and to allow precise adjustment of sensor alignment.

Features:

High Optical Performance Models Including a 500 Foot (152 m) Thru-Beam and a 10 Foot (3 m) Diffuse Reflective Unit

Output Options Include a 3 Amp SPDT Relay

All Units Offer Light/Dark Selection

Logic Options Include ON-Delay, OFF-Delay and One-Shot Delay

Fully Potted Construction for Use in Areas Subject to Washdown, High-Shock and/or Vibration

Choice of Pre-Wired Power Cable, Built-In Microconnector, and Built-In Euro Versions. Standard Pre-Wired Cable Length Is 6 Feet (1.8 m)

Different Brackets Available Including Ball Swivel

Infrared Light Source

CSA Approved

Certified to UL Standard, UL 508
